| VIDEO |
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
1920 x 1080 |
| Scanning Mode |
Progressive Scan |
| Lens Type |
Fixed-focal |
| Focal Length |
f=3.3 |
| Aperture |
F2.0 |
| Iris Control |
Fixed Iris |
| Angular Field of View |
101.3° (H) 54.5°(V) 119.7°(D) |
| Pan/Tilt/Rotate Range |
Pan: ±5º, Tilt: +65º~+85º, Rotate: ±90º |
| Min. Illumination |
Color : 0.1 Lux @ F2.0B/W : 0 Lux (IR LED On) |
| Dynamic Range |
120dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night |
IR Cut filter with Auto Switch |
| IR Distance (LEDs) |
20m |
| Image Setting |
Configurable Exposure, White Balance, Sharpness |
| Digital Noise Reduction |
Configurable 2DNR/3DNR |
| Backlight Compensation |
On/Off |
| Mirroring / Pivot |
Horizontal / Vertical / Pivot |
| Image Stabilizer |
- |
| De-fog |
- |
| Privacy Masking |
8 Zones |
| Intelligent Video |
Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out |
1 CVBS (BNC) |
| NETWORK |
| Video Compression |
H.265, H.264 (MP) M-JPEG |
| Intelligent Codec |
Supported |
| Bitrate Control |
H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression |
ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio |
Yes |
| IP Camera Protocol |
DirectIP 2.0 |
| Max. Frame Rate |
30ips: 1920 x 1080(WDR) |
| Supported Resolution |
16:9 - 1920 x 1080, 1280 x 720, 640 x 360, 352 x 2404:3 - 1440 x 1080, 960 x 720, 480 x 360, 272 x 240 |
| Multi-video Streaming |
Triple Streaming |
| Network Protocols |
DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security |
SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client |
DirectIP Mobile NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet |
RJ45 (10/100BASE-T) |
| Recording Session Buffer |
Yes (Up to 60MB) |
| Edge Storage |
micro SD / SDHC / SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT |
| Trigger Event |
Motion Detection, Alarm In, Audio Detection, Tampering, Trip Zone |
| Event Notification |
Remote S/W, Email (with Image) |
| Audio In / Out |
- |
| Alarm In / Out |
- |
| ENVIRONMENTAL |
| Vandal Proof Casing |
IK10 - Poly Carbonate / IK08 - Tampered Glass |
| Outdoor Ready |
IP69K |
| Operating Temperature |
-40°C ~ +60°C (-40°F ~ +140°F)*Starting up at above -20°C (-4°F) |
| Operating Humidity |
0% ~ 90% |
| ELECTRICAL |
| Power Source |
PoE (IEEE 802.3af Class 3) |
| Power Consumption |
9.5W (Heater on) |
| Approvals |
FCC, CE, MIL-STD-810GEN50155(M12 model only) |
| MECHANICAL |

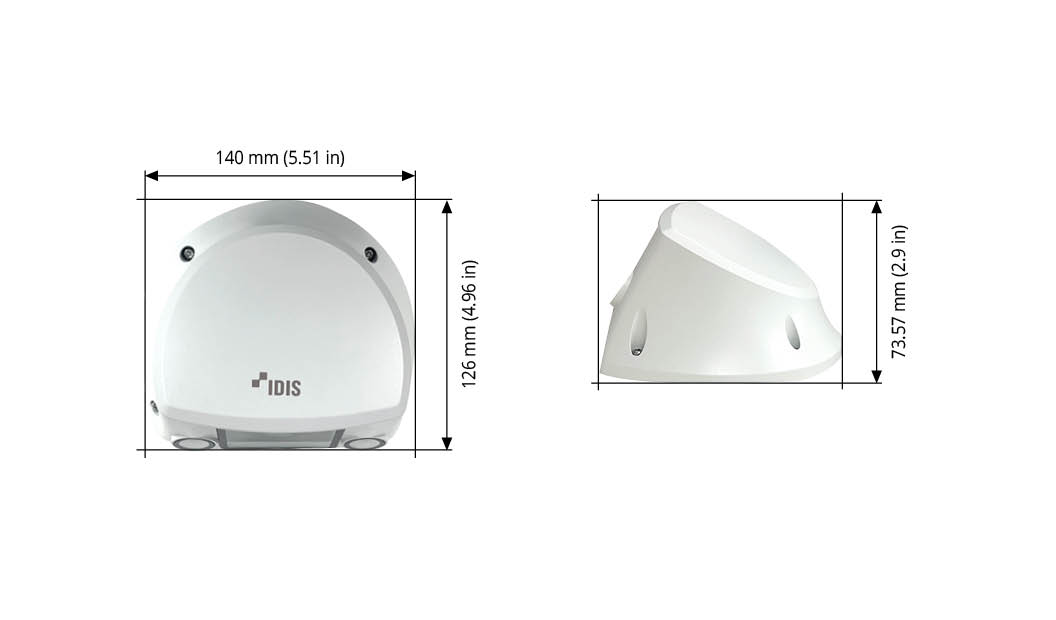

| Dimensions - Main module |
140mm x 73.57mm x 126mm (5.51" x 2.9" x 4.96") |
| Weight - Poly Carbonate |
0.66Kg (1.46lbs) |
| Weight - Tampered Glass |
0.67kg (1.48lbs) |
2MP
Fixed Lens
Heater
IR LED
True WDR
PoE
IR Cut Filter Removable
NDAA Compliant
TAA Compliant
