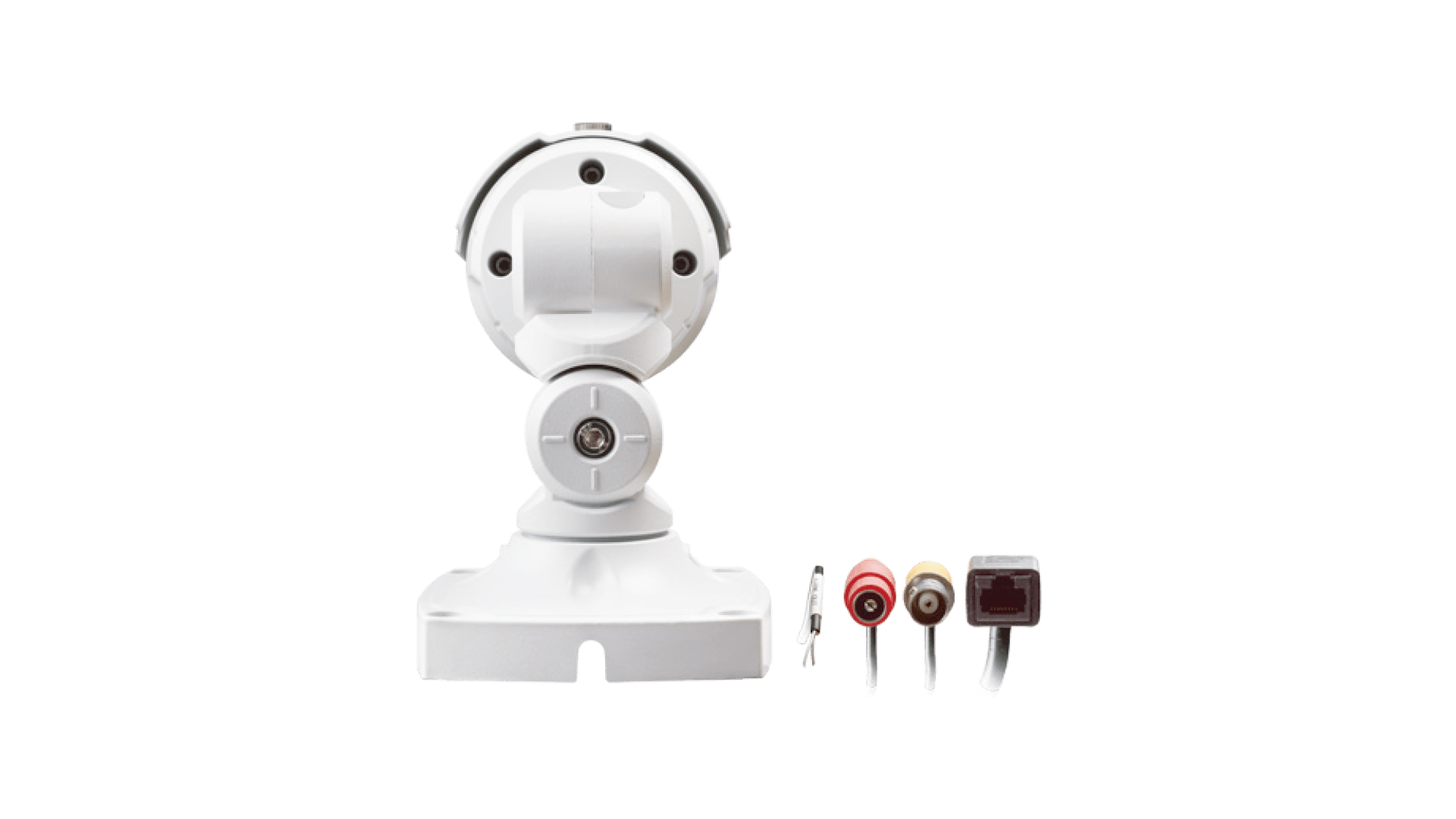

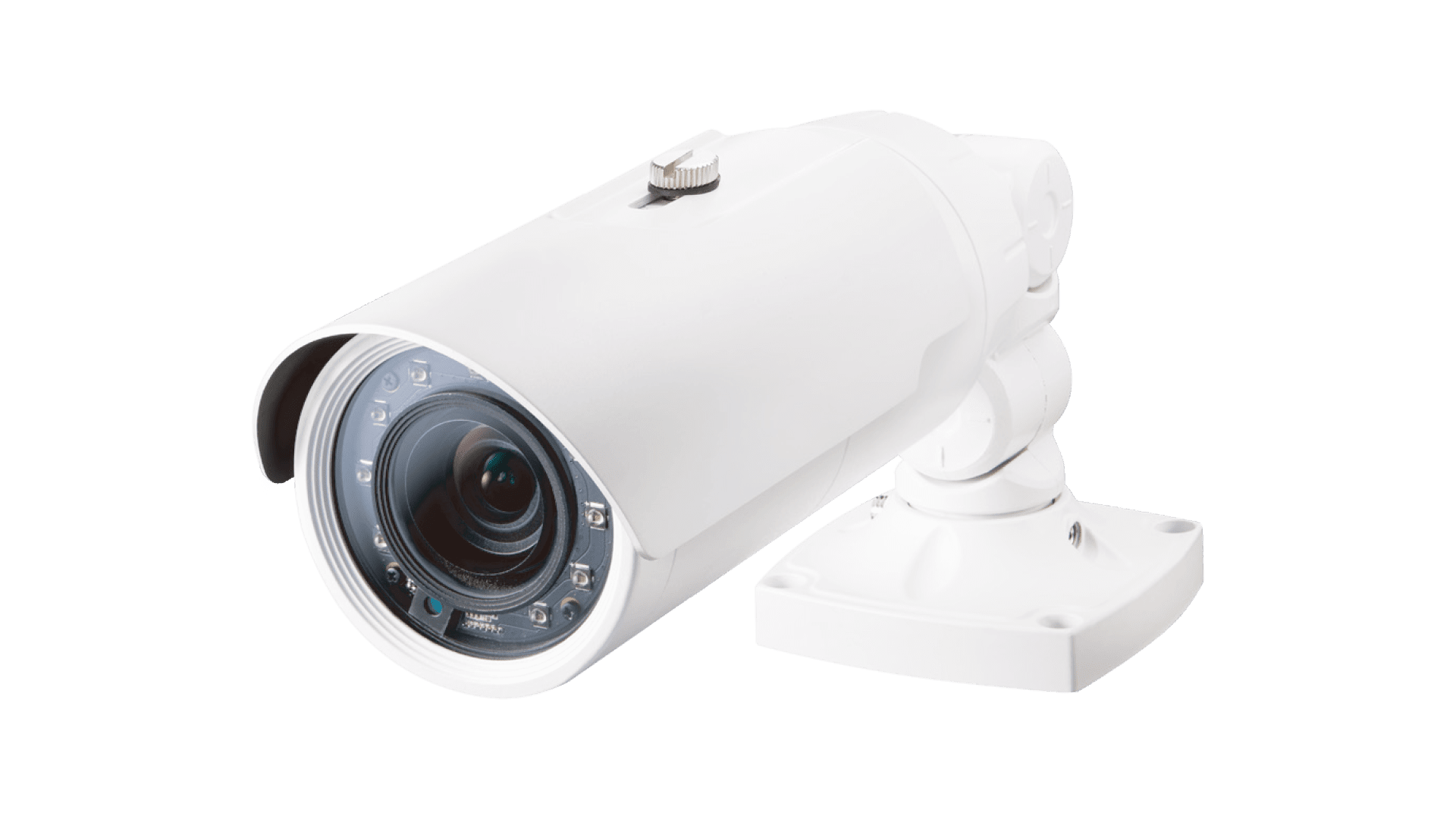

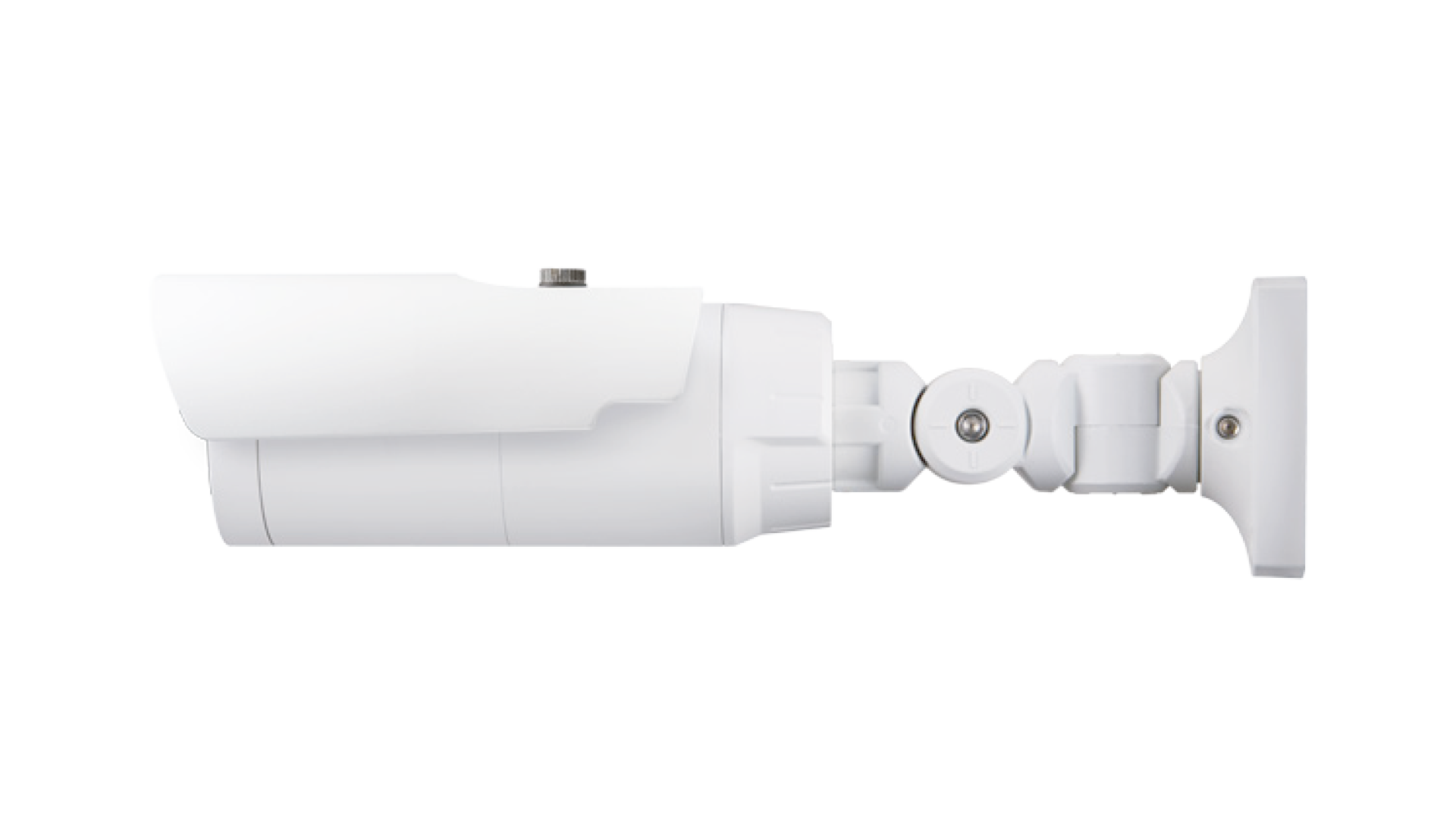

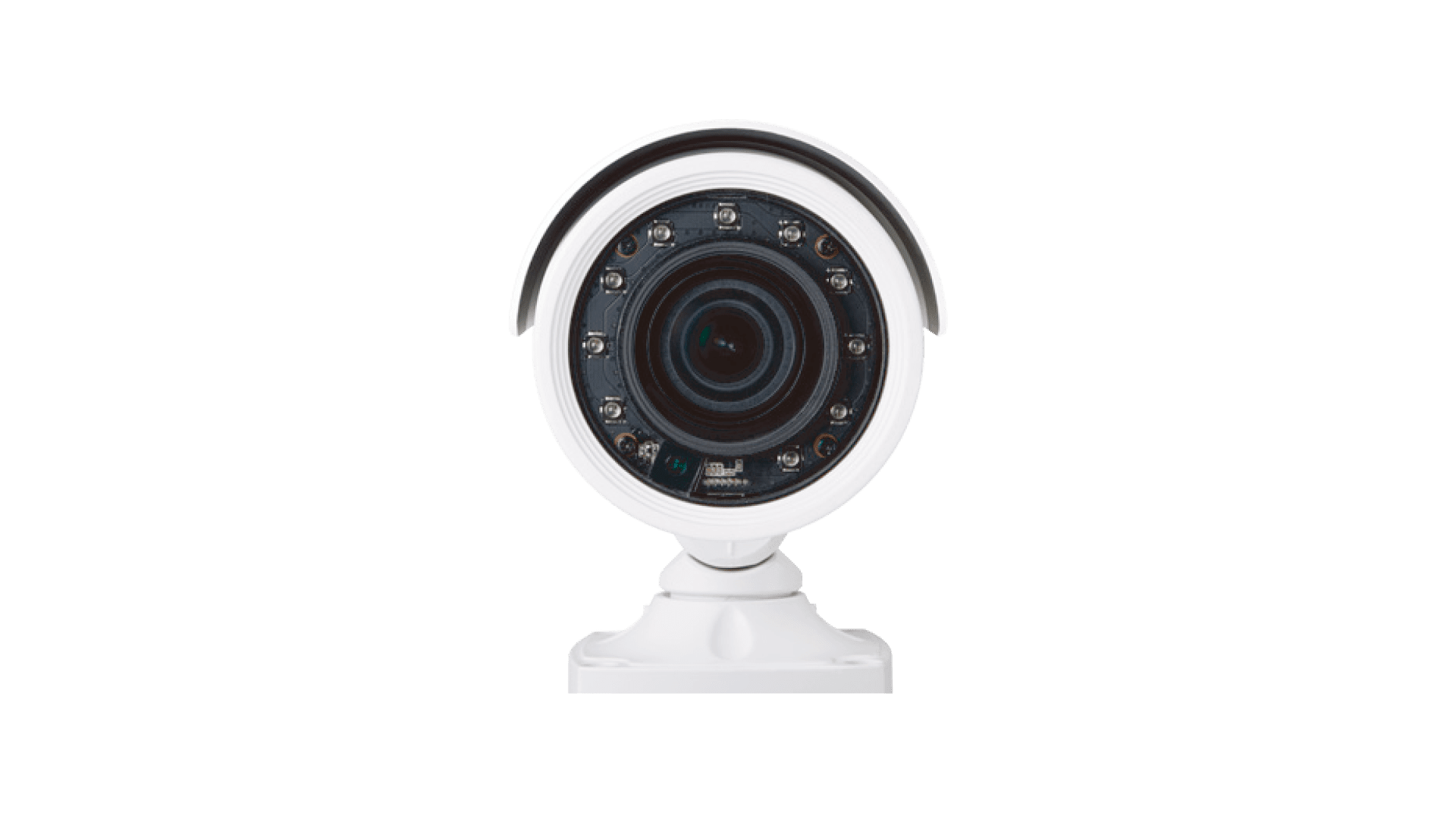

8MP IR Bullet Camera with Heater
8MP
Motorized focus Lens
Weather Proof
Heater
IR LED
Easy Installation
Two-way audio
IP66
PoE
IR Cut Filter Removable
ONVIF
| Video | |
| Image Sensor | 1/2.5" CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=3.6 - 9.8mm |
| Aperture | F1.6 - 3.2 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 103.0°(H), 52.7°(V), 118.0°(D) Tele : 36.6°(H), 19.6°(V), 41.1°(D) |
| Min. Illumination | COLOR : 0.3 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | More than 69 dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30 m / 98.4 ft (10 ea) |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | |
| Privacy Masking | 16 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 BNC |
| Network | |
| Video Compression | H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP, ONVIF Profile S |
| Max. Frame Rate | DirectIP™ Mode : 15ips : 3840x2160 Compatibility Mode : 30ips : 3840x2160 |
| Supported Resolution | 3840 x 2160 (8MP), 1920x1080, 1280x720, 704x480, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP™ Mode : DirectIP Protocol Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
| Security | DirectIP™ Mode : SSL Encryption Compatibility Mode : Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer | Yes (Up to 100MB) |
| Edge Storage | - |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Audio Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | Line-in 1ea / Line-out 1ea |
| Alarm In / Out | Input 1ea / Output 1ea |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66, Heater |
| Operating Temperature | -40°C ~ +50°C (-40°F ~ +122°F), Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE (IEEE 802.3af Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3) |
| Approval | FCC, CE, KC |
| Mechanical | |

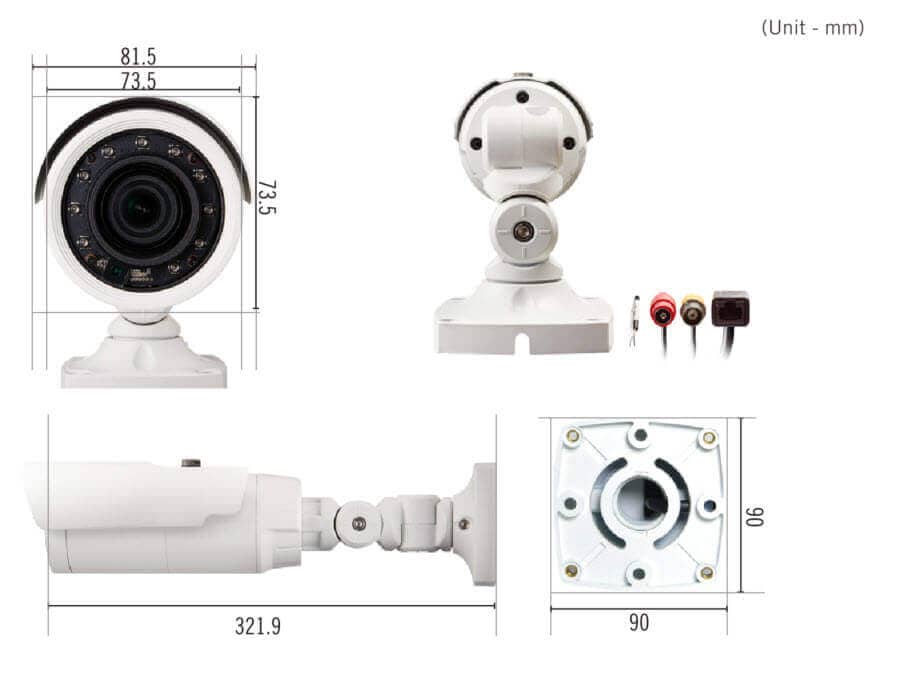

| Dimensions (W x H) | Ø73.5mm x 321.9mm (Ø2.9" x 12.67") |
| Weight | 1.4 kg (3.09 lb) |
