DV-2232

Specialized in DirectIP NVR	Supports Crowd Detection	Live Occupancy Dashboard for display to keep capacity limits
Supports 32ch IP Camera	Supports Social Distancing Violation	Dashboard Reporting of visitor flow and compliance levels
Powered by the most advanced IDIS Deep-Learning Analytics (IDLA)	Supports Mask Rule Violation
Supports People Counting and Occupancy Control	Generating real-time event notifications with high accuracy

System
Video Compression	H.264, H.265
Video Inputs	32ch IP
Supported Device	DirectIP NVR
Newtork Connection	Gigabit Ethernet x 1 (1000Base-T)
IDLA Processing Unit	NVIDIA RTX2060, 8GB
Operating System	Microsoft® Windows Embedded Standard 8
Processor	Intel® I7-7700, 3.6GHz
Memory	DDR4 PC-19200, 8GB
Video Outputs	1 HDMI, 1 DP, 1 VGA
USB	6 ( 2 Front USB 2.0 + 2 Back USB 3.0 + 2 Back USB 2.0)
VA Support	People Counting, Occupancy Control, Crowd Detection, Social Distancing Violation, Mask Rule Violation
General

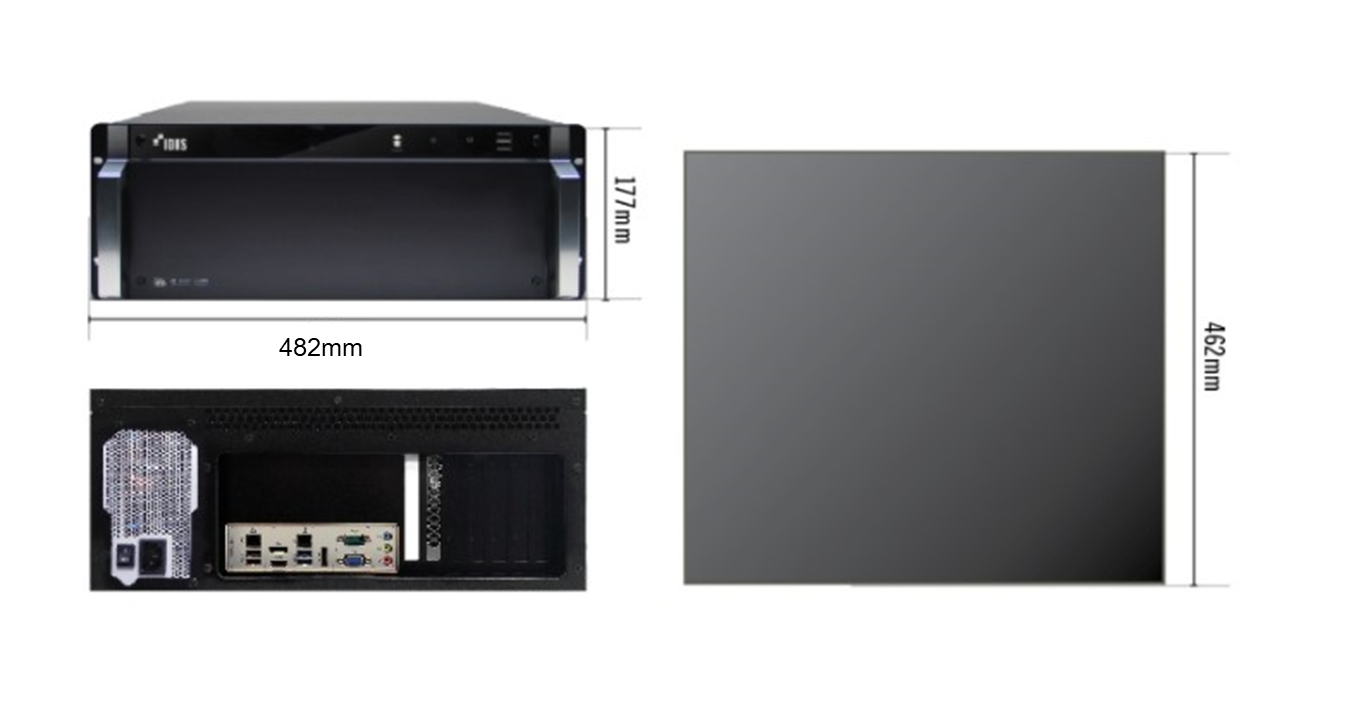

Unit Dimension (W x H x D)	482mm x 462mm x 177mm (19.0" x 18.2" x 7.0")
Unit Weight	14.0kg (30.9 lb)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	0% to 90%
Power Input	AC 100-240 V, 50/60Hz, 5.5 - 2.5A
Power Supply	Singlel Power
Power Consumption	350W
ACCESSORIES SUPPLIED
Power Cord	1
General
Approvals	FCC, CE, CB, UL, KC
