DC-Y3C14WRX12MP Vandal-Resistant IR Fisheye Camera |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications
| Video | ||
| Image Sensor | 1/1.7" 12MP CMOS | |
| Max. Resolution | 3200 x 2944 | |
| Scanning Mode | Progressive Scan | |
| Lens Type | Fixed-focal | |
| Focal Length | f=1.98mm | |
| Aperture | F2.8 | |
| Iris Control | Fixed Iris | |
| Angular Field of View | 180°(H), 168°(V), 180°(D) | |
| Pan/Tilt/Zoom | - | |
| Min. Illumination |
Color : 0.2 lux @ F2.8 B/W : 0 lux (IR LED ON) |
|
| S/N Ratio | 52.7dB | |
| Dynamic Range | 120 dB (True WDR) | |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15) | |
| Day and Night | IR cut filter with auto switch | |
| IR Distance (LEDs) | 15m (6ea) | |
| Image Setting | Configurable Exposure, White Balance, Sharpness | |
| Backlight Compensation | On / Off / HSBLC | |
| Mirroring / Pivot | - | |
| Image Stabilizer | - | |
| Privacy Masking | 8 Zones | |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap | |
| Viewing Composition | 1O, 1P, 1P2R, 2P, 4R, 1O7R | |
| Video Out | - | |
| Network | ||
| Video Compression | H.265, H.264 (MP), M-JPEG | |
| Intelligent Codec | Supported | |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR | |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law | |
| Two-way Audio | Yes | |
| IP Camera Protocol | DirectIP, ONVIF Profile S | |
| Max. Frame Rate | DirectIP™ Mode : 15ips : 3200 x 2944 (WDR) Compatibility Mode : 30ips : 3200 x 2944 15ips : 3200 x 2944 (WDR) | |
| Supports Resolution |
DirectIP™ Mode : 3200x2944, 800x736 Compatibility Mode : 3200x2944, 2400x2208, 3200x1472, 1600x1472, 1600x736, 800x736 |
|
| Multi-video Streaming |
DirectIP™ Mode : Quadruple Streaming Compatibility Mode : Hextuple Streaming |
|
| Network Protocols |
DirectIP™ Mode : DirectIP Protocol Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
|
| Security | DirectIP™ Mode : SSL Encryption Compatibility Mode : Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption | |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite | |
| Ethernet | RJ45 (10/100/1000BASE-T) | |
| Recording Session Buffer | Yes (Up to 60MB) | |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) | |
| ALARM AND EVENT | ||
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone | |
| Event Notification | Remote S/W, Email (with Image) | |
| Audio In/ Out | Line-in 1ea + Internal Mic 1ea / Line-out 1ea | |
| Alarm In / Out | Input 1ea / Output 2ea | |
| Environmental | ||
| Vandal Proof Casing | IK10 | |
| Outdoor Ready | IP67 | |
| Operating Temperature | -10°C ~ +60°C (+14°F ~ +140°F), Starting up at above 0°C (32°F) | |
| Operating Humidity | 0% ~ 90% | |
| Electrical | ||
| Power Source | 12VDC, PoE (IEEE 802.3af Class 3) | |
| Power Consumption | 12V=, 1.1A, 12.6W PoE, IEEE 802.3af(Class 3) | |
| Approval | FCC, CE, KC | |
| Mechanical | ||
| Dimensions (Ø x H) | Ø155.0mm x 58.3mm (Ø6.10" x 2.29") | |
| Weight | 0.92 kg (2.03 lb) | |
12MP
12MP
Fixed Lens
Weather Proof
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
IR Cut Filter Removable
ONVIF

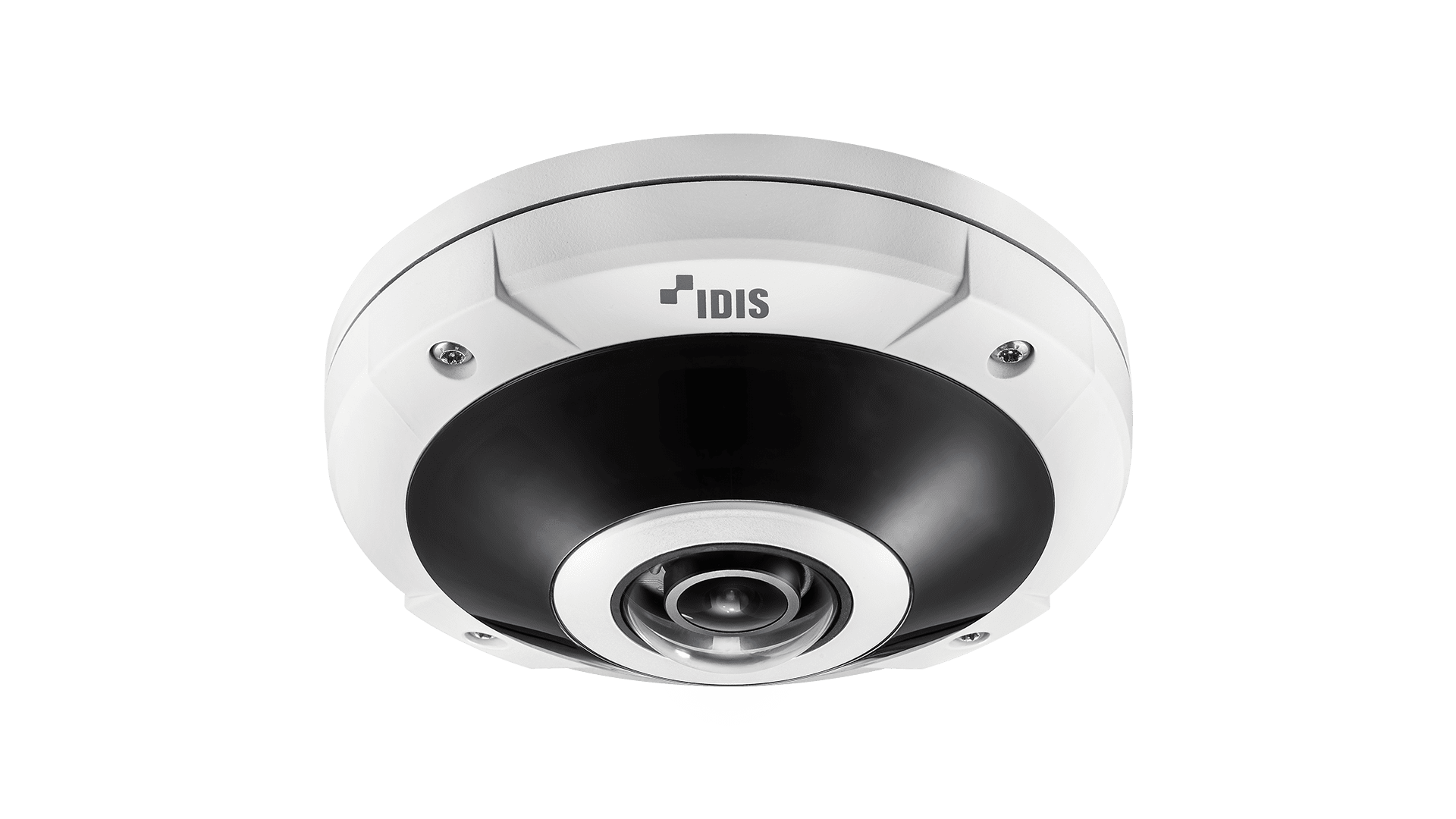

PRODUCT IMAGE
DIMENSIONS
ACCESSORIES (OPTIONAL)
DA-MA2100
DA-MA2100
WALL MOUNT
DA-WM2050
JUNCTION BOX
DA-JB2200
Tilt Mount
DA-TM1100
CEILING MOUNT
DA-CM2050
Pole Mount
DA-LM2000
Corner Mount
DA-RM2000
